Retaining wall is another structure in construction. Retaining wall is a used for holds soil or water in place to prevent it from falling or collapsing. This wall is usually used in areas with steep terrain or when landscaping needs to be shaped for specific purposes, such as hillside farming or roadway overpasses.
In this article we have discussed about the concrete volume for retaining wall. Before we start calculation,

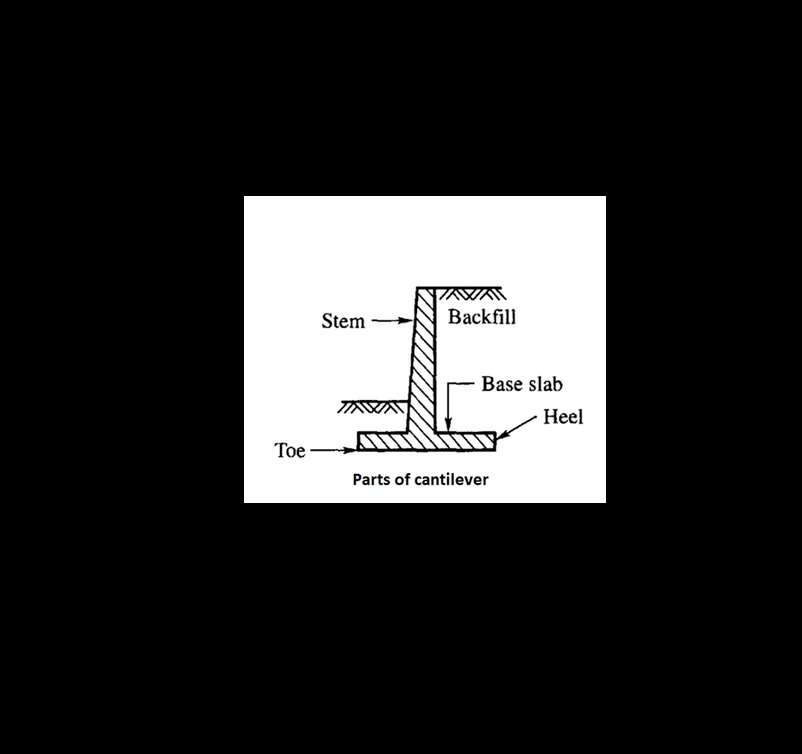

Here are some terms which are used in retaining wall.
- Base
- Stem
- Heel
- toe
Courtesy – Civilconcept
Here we have divide retaining wall into two parts, A & B
Volume of A = L X B X H
= 20 X 2 X 200/1000
= 20 X 2 X 0.2
= 8 CUMT
Volume of B = ((a+b/2) x h ) X L
= (0.2+0.5)/2 x 5 x 20
= 35 cumt
Total Volume of retaining wall = A + B = 8 + 35 = 43 cumt
So, this is the calculation method to calculate concrete volume for retaining wall.
